Multi Use Polisher ATP-2200

To satisfy of our customers need for polisher mobility,efficiency, and reduced operationg cost, FiberSource has introduced the new ATP-2200 polisher and polishing system.


High Throughput, High Yield and Cost Efficiency.

ATP-2200 can polish 24 ferrules at one time with individual pressure system. Moreover, due to adopting NTT-AT's unique semi-individual polishing trajectory, ATP-2200 enables you to prevent scratch damage from spreading fragments, and decreases the wasted polishing film by using square film.

Motion Mechanism

A semi-individual trajectory is used, resulting in less scratches on the fiber. If there are objects on the film, a semi-individual trajectory minimizes the damage to only a few ferrules. This approach should increase the yield of your product and reduce waisted polishing film.

Motion ATP Motion
Others ATP-2200

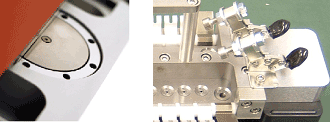

Simple Operation

It is easy to set ferrules into the polishing jig, and set the jig into the main body.



Advanced PC 2.5mm & 1.25mm ferrules for all connectors, SC & MU housing ferrules, MT/MPO/MT-RJ ferrules & APC 1.25mm ferrules

2.5mm Ferrule MT-MPO SCU Plug Type SCA Plug Type
2.5 mm Ferrule MPO-MTP SCU Plug In SCA Plug In
FCU Plug Type FCA Plug Type MU Plug Type LC Plug Type
FCU Plug Type FCA Plug Type MU Plug Type LC Plug Type


ATP-2200 has the programming function of the polishing time and the turning speed of the polishing plate. You can set 9 programs which include 9 processes each. Solves the problem of resetting the processes each time the connector is changed.
